Solid Lithium Metal Anode Forming Solution
The equipment is used for lithium strip calendering and lamination
-
Mechanical speed
MAX:10m/min
Operation speed
MAX:3m/min
Roller width
450mm
-
Film width
300mm
Roller surface temperature
15℃～100℃
Rolling thickness accuracy
±2μm
-
-

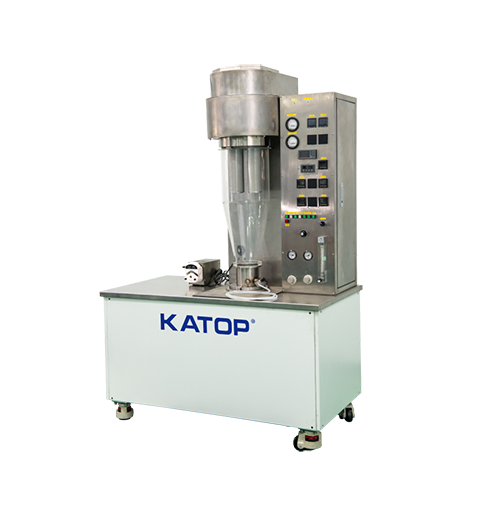

Fluidized Bed
The equipment suspends the powder materials in the reaction vessel through air blast, which can fully mix the materials, or achieve the effect of coating or granulation by atomizing the coating solvent
-
Processing capacity
1L
Air volume
MAX:2m³/min
Temperature
80℃
-
Motor speed
MAX:800r/min
Air consumption
15m³/H
Electric heater
1.3KW 220V
-
