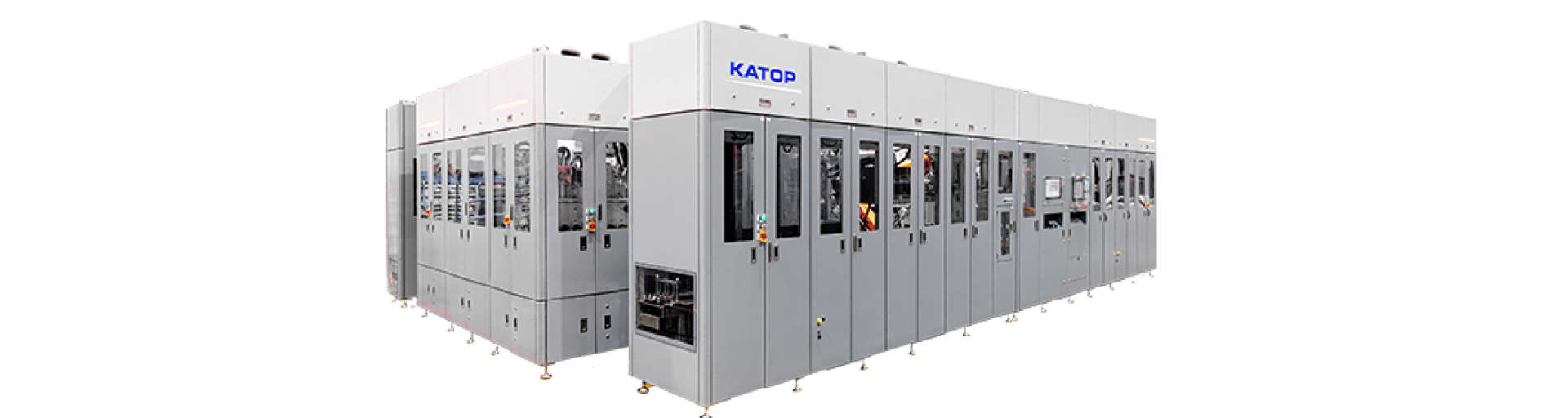

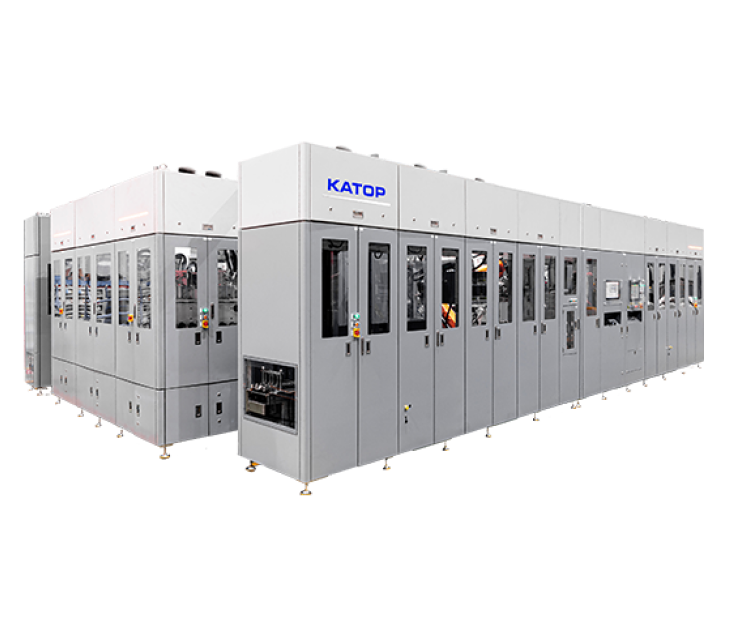

Filling Machine

The equipment is mainly used for the filling of prismatic cell, which can realize automatic code scanning, weighing before and after filling, Hi-pot test, isobaric filling (quantitative/variable), wiping, nail insertion etc.

Request for a Quotation

Product Feature

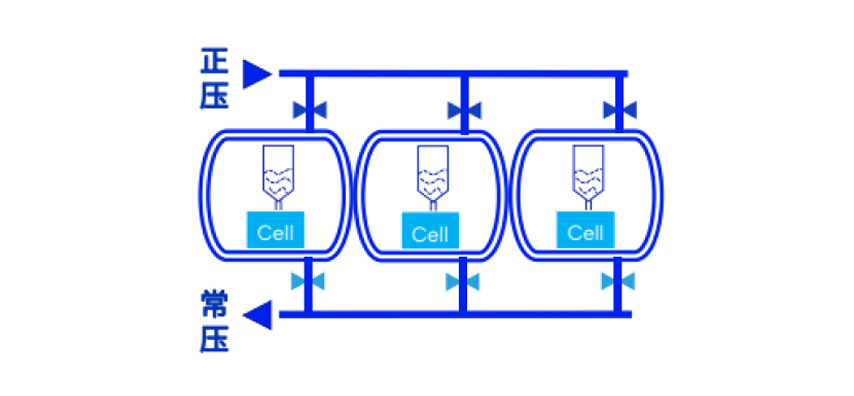

  • High-efficiency isobaric filling machine, efficiency improvement>40%, reducing 30%-50% of aging time, reduction of high temperature aging time, and reduction of the volume of secondary filling

  • The equipment is mainly used for the filling of prismatic cell, which can realize automatic code scanning, weighing before and after filling, Hi-pot test, isobaric filling (quantitative/variable), wiping, nail insertion etc.

Product Model

  • ParameterValue
    CapacityMAX:45PPM
    Filling accuracyMAX:1400mm
    Filling accuracy≤±0.6%（maximum filling volume 1400g）
    CMKFilling volume CMK≥1.67
    Filling methodIsobaric filling
    Qualification rate≥99.8%
    Utilization rate≥98%
    Positive pressure0-1.5 MPa
    Vacuum pressure≤-95 Kpa
    Weighing system accuracy±0.1 g
