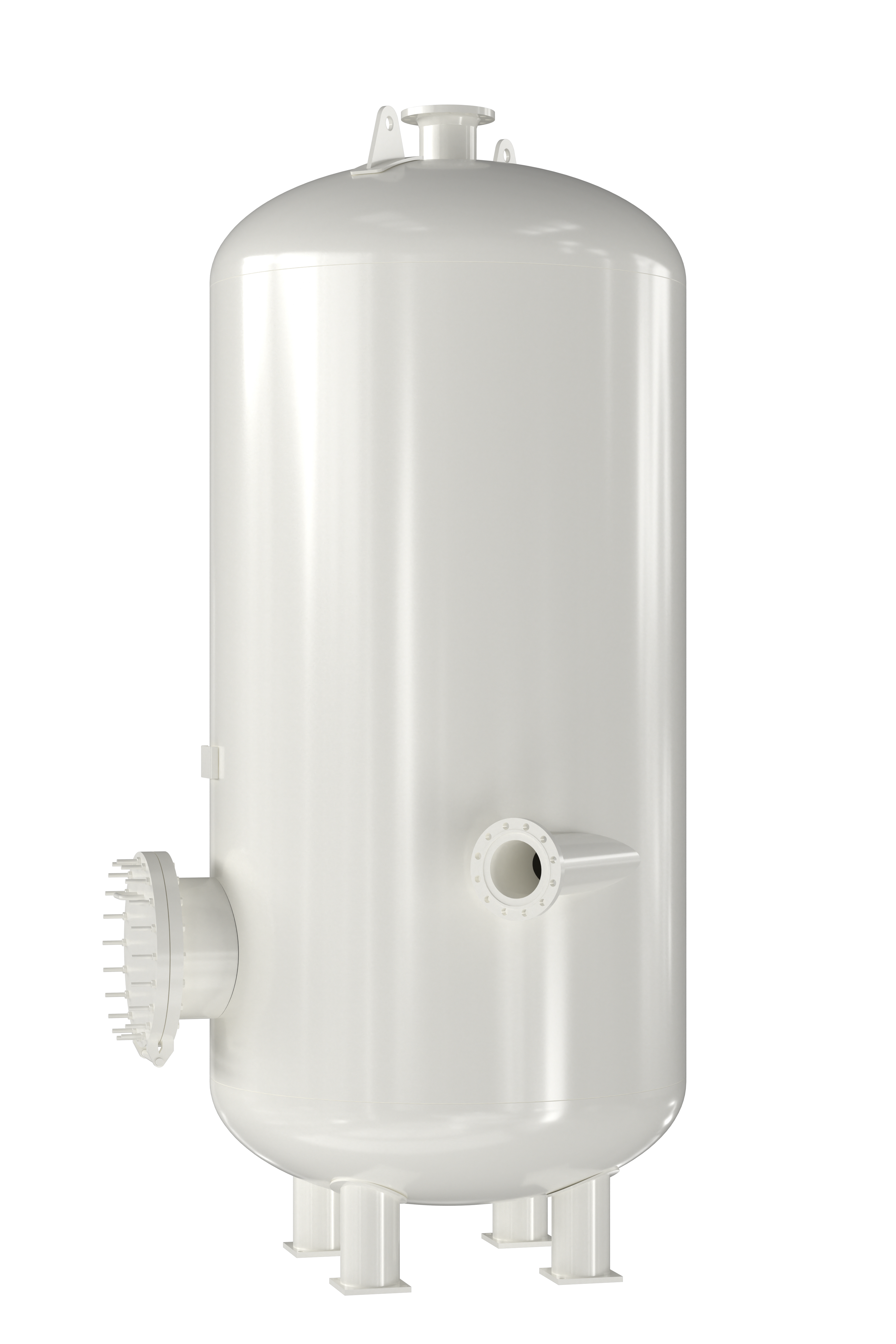

Chlorine Tank
Designed to storing gases, liquefied gases, and liquids with a maximum working temperature higher than or equal to their standard boiling point.
-
Class
Class II
Working pressure
0 ~ 0.3 MPa
Volume
9.28 m³
-
Cylinder dimensions
DN 1800 × 3000 × 12 mm
Materials of main body
Cylinder: Q345R T12.0 mm
Head: Q345R T12.0 mmApplicable standard
GB/T 150
-
-
Agitated Vessel
It is used for liquid-liquid mixing, solid-liquid suspension, and gas-liquid or liquid-liquid dispersion to achieve process objectives such as absorption, extraction, dissolution, and crystallization. Agitator type is selectable per process needs.
-
Class
Class I
Working pressure
0.4 MPa
Volume
0.06 m³
-
Cylinder dimensions
DN 400 × 335 × 5 mm
Materials of main body
Cylinder: S30408 T5.0 mm
Head: S30408 T5.0 mmApplicable standard
GB/T 150
-
-

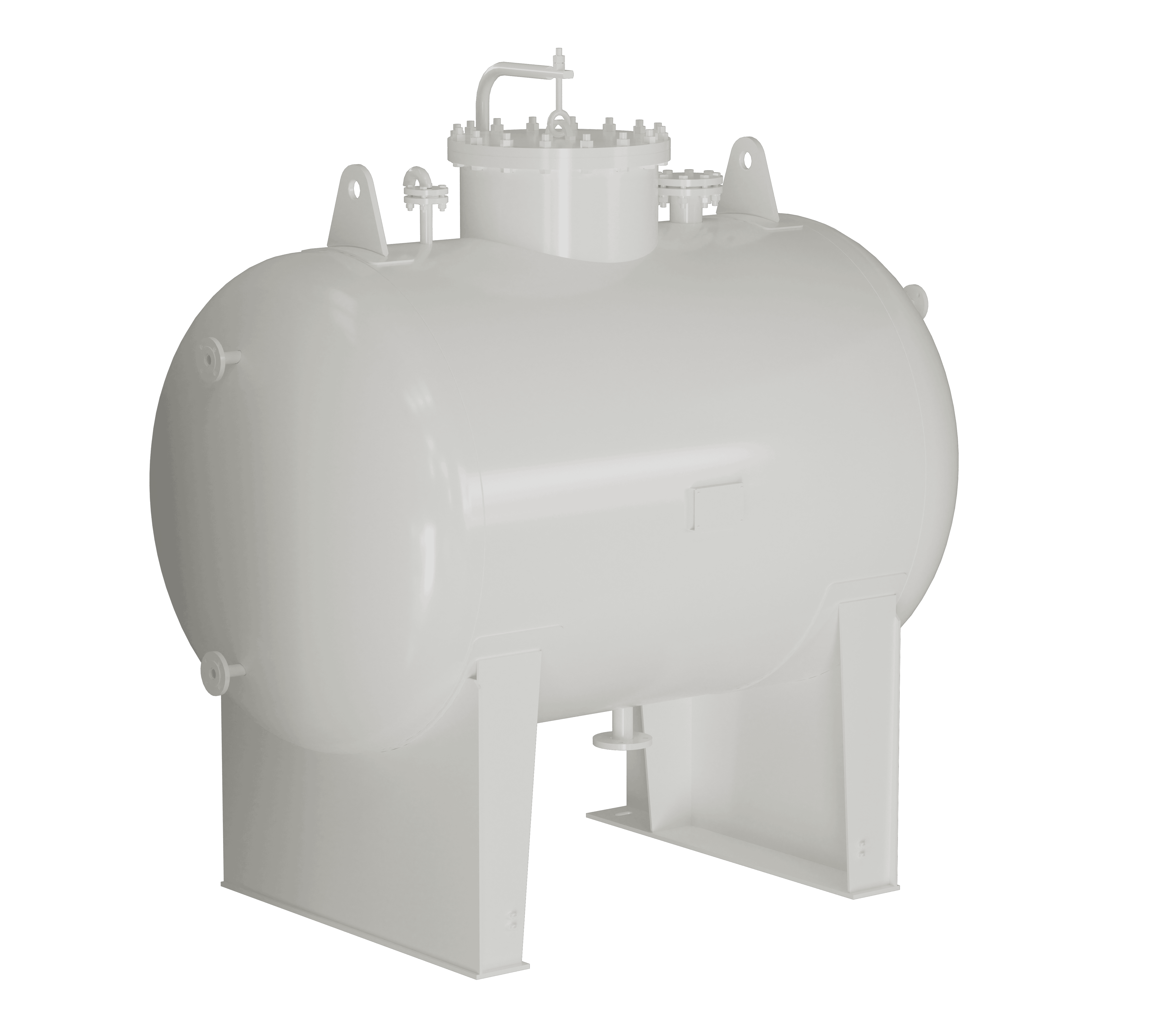

Oil Tank
Oil tanks (pressure vessels) include process tanks (directly connected to production) and storage tanks used for storing raw materials or products.
-
Class
Class II
Working pressure
0 ~ 0.19 MPa
Volume
2.63 m³
-
Cylinder dimensions
DN 1300 × 1500 × 5 mm
Materials of main body
Cylinder: Q235B T5.0 mm
Head: Q235B T5.0 mmApplicable standard
GB/T 150
-
-

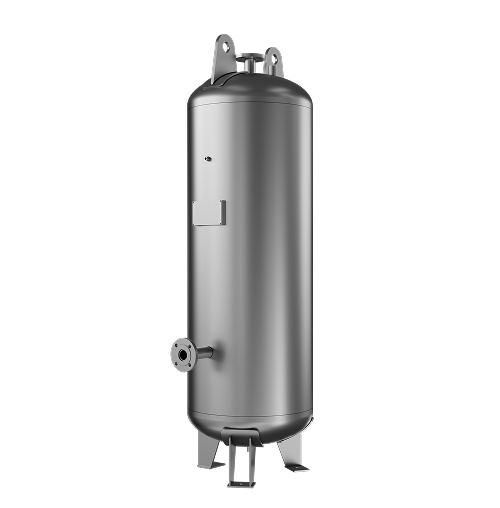

Positive Pressure Tank
It is used for storing, transporting, and processing substances that require a high-pressure environment.
-
Class
Class I
Working pressure
0 ~ 0.5 MPa
Volume
0.9 m3
-
Cylinder dimensions
DN 800×1500×3mm
Materials of main body
Cylinder: S30408 T3.0 mm
Head: S30408 T3.0 mmApplicable standard
GB/T 150
-
