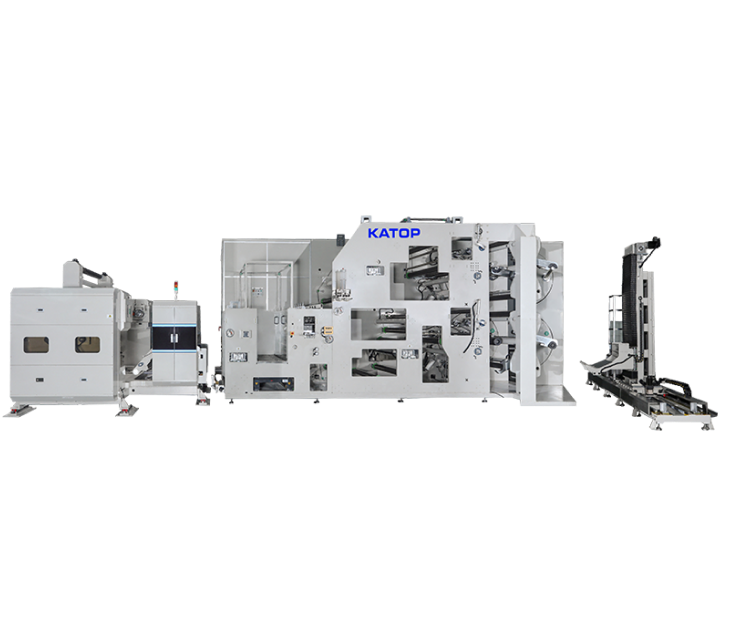

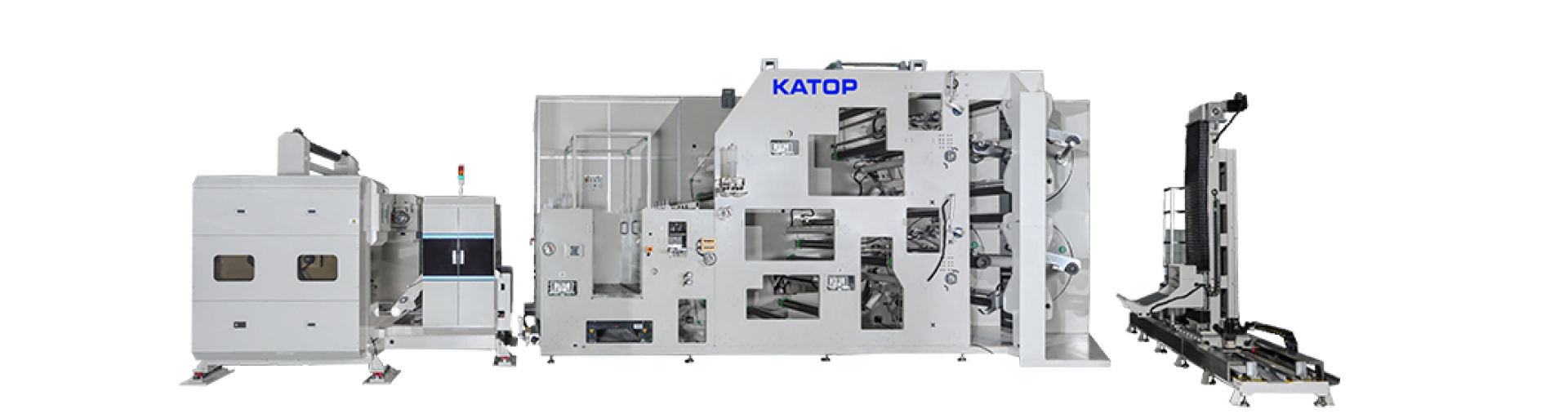

Electrode Slitter

Request for a Quotation

Product Feature

  • Both traditional circular cutter and automatic cutter arrangement system can be installed

  • Electronic knife and hob are universal

  • High cutting speed, the highest cutting speed is 100m/min

  • The hob is driven independently, with the radial runout of the lower cutter shaft ≤0.007mm and the axial runout of the blade ≤0.005mm

  • Simple operation, humanized operation interface and high cutting precision

Product Model

  • ParameterSpecification
    Slitting SpeedMAX:100m/min
    Yield Rate≥99%
    Operational Availability≥98%
    Max Unwinding Diameter850mm
    Min Slitting Width35mm
    Unwinding Alignment Accuracy±0.2mm
    Slitting Width Tolerance±0.1mm
    Slitting BurrHorizontal burr ≤8 μm
    Vertical burr (protrusion) ≤7 μm


Correlation Technique
