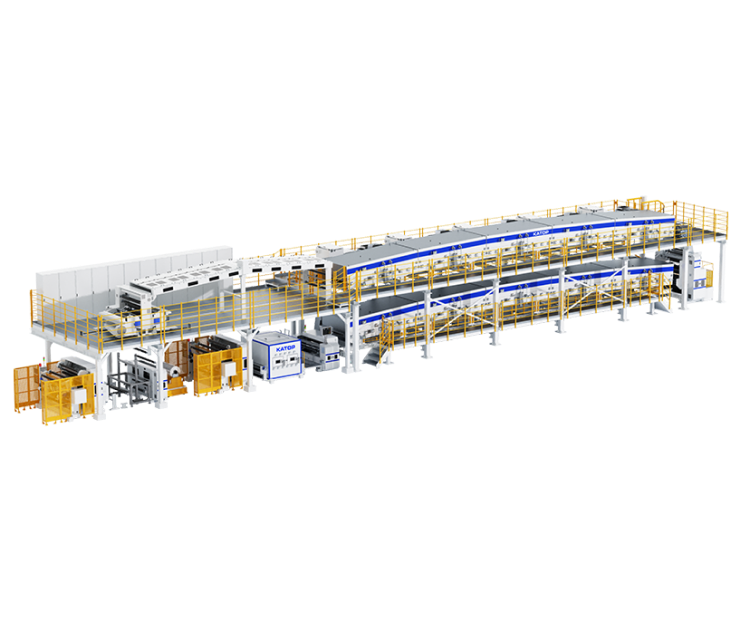

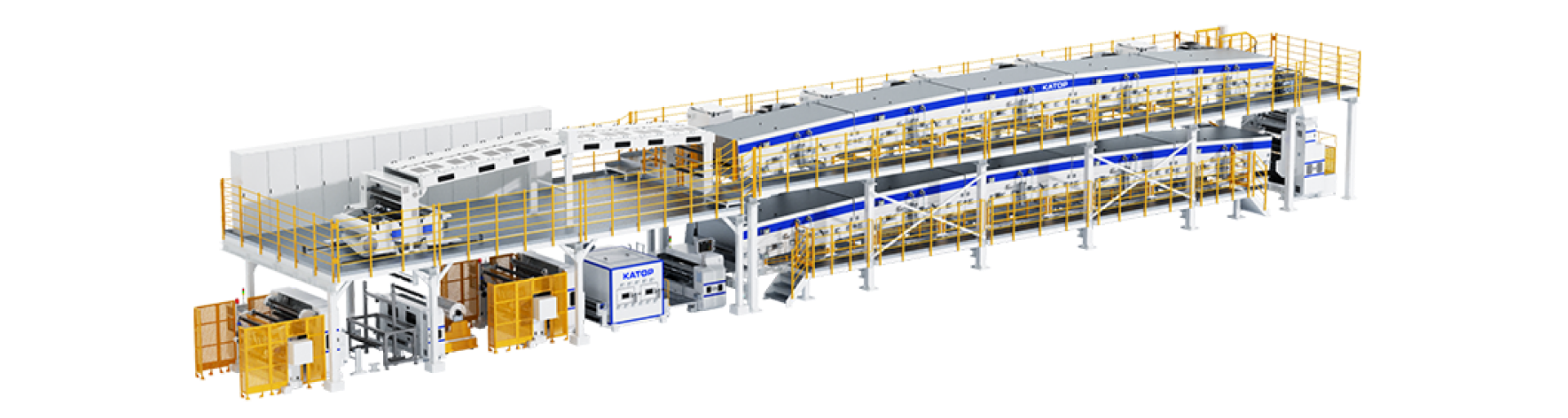

Separator Coater

This equipment is designed for simultaneous double-sided coating processes in wet electrode production lines.

Request for a Quotation

Product Model

  • ModelEquipment DimensionsCompatible Substrate WidthDrying ZonesHeating Methods
    KC-CS-750-12-M.M20000*2800*290065012Electric / Thermal Oil / Steam / Gas
    KC-CS-1100-16.16-A.A30000*3200*3500100016Electric / Thermal Oil / Steam / Gas
    KC-CS-1300-16.16-A.A30000*3600*3500120016Thermal Oil / Steam / Electric
    KC-CS-1400-16.16-A.A30000*3800*3500130016Electric / Thermal Oil / Steam / Gas
    KC-CS-1700-16.16-A.A30000*4100*3500160016Electric / Thermal Oil / Steam / Gas


  • Coating product parametersParameter value
    Coating methodMicro-gravure continuous coating / Rotary spray coating
    Coating methodMAX:150m/min
    Coating methodMAX:150m/min
    Coating widthMAX:1600mm
    Winding Tension3-50N
    Coating Thickness Accuracy±0.3μm
    Dry Film Thickness (Single Side)0.5-4μm
    Substrate Thickness5-25μm
    Roll Size/WeightMAX:Φ500mm/150kg
